1995 Toshiba CNC Horizontal Boring Mill Model BTD 110-R16

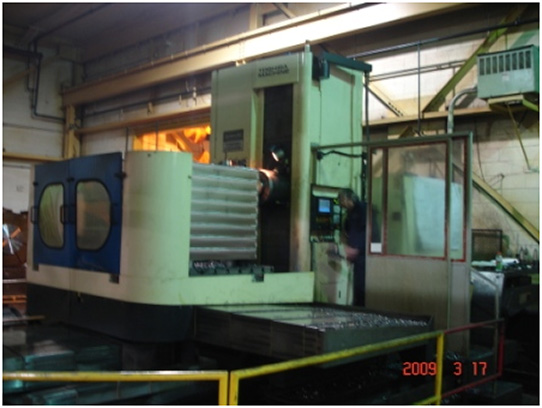

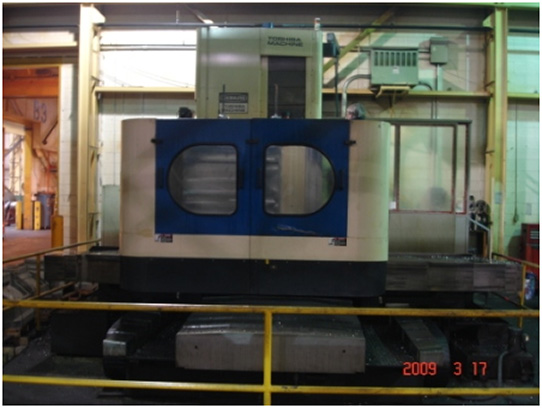

1995 Toshiba CNC Horizontal Boring Mill Model BTD 110-R16 With Tosnuc T888 CNC Control

Contact An Agent
Toshiba CNC Horizontal Boring Mill
Manufacturer Model Description
Toshiba BTD 110-R16

X axis travel 2000mm 78.7"
Y axis travel 1500mm 59"
Z axis travel 1450mm 57"
W axis 500mm 19.7
B axis rotary table 360,000 pos.

Table size 1400mmx1600mm 55"x63"
Table load capacity 6300kg 13,860lb
Table min. Index angle .0001 degrees

Spindle diameter 110mm 4.3"
Spindle speeds 5-3000rpm
Spindle motor 30/40hp
Spindle taper ISO #50
Milling spindle diameter 225mm 8.9"

ATC 38 pockets
ATC V-flange Cat

Machine weight 28,000kg 61,600lb
Floor space 5130mm x 6160mm 202" x 242"
Machine height 4000mm 157"

Machine includes:
Pendant control
Tosnuc T888 CNC control
Coolant system
Chip guards
Chip conveyor

Very well maintained machine, good condition
