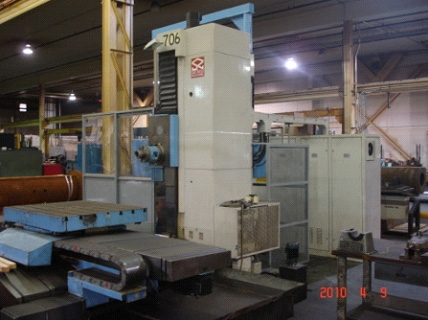

1990 San Rocco CNC Horizontal Boring Mill

1990 San Rocco CNC Horizontal Boring Mill Model Futura 110 MF with Heidenhain TNC 155 CNC Control.

Contact An Agent
San Rocco CNC Horizontal Boring Mill
Manufacturer Model Specifications
San Rocco Futura 110 MF

X axis travel 78.7"
Y axis travel 51.2"
Z axis travel 39.4"
W axis 14.6"
B axis rotary table Every 90 deg.

Table size 43" x 51
Table load capacity 6600lb
Table min. Index angle 90 deg.

Spindle diameter 4.3"
Spindle speeds 5-1500rpm
Spindle motor 20hp
Spindle taper ISO #50

Machine weight 32,000LB Approx.

Machine includes:
Pendant control
Heidenhain TNC 155 CNC control
Coolant system
Operator guards
Telescopic way covers
Very well maintained machine, good condition
