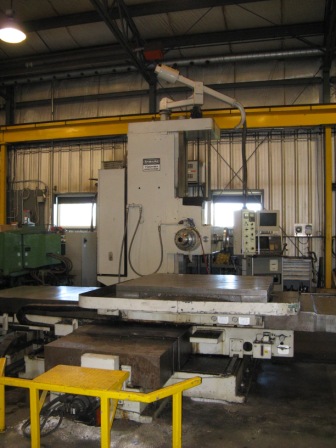

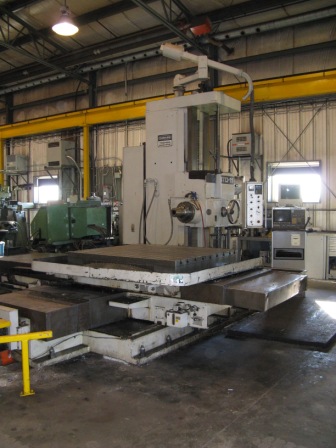

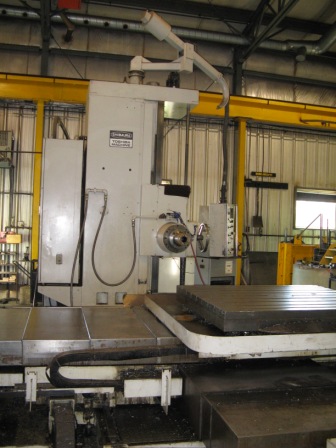

1984 Toshiba CNC Horizontal Boring Mill BTD11B-R3

Contact An Agent
Toshiba CNC Horizontal Boring Mill
Manufacturer Model Description
Toshiba BTD11B-R3

Travels:
Spindle Diameter 4.33"
Milling Spindle Diameter 8.85"
Spindle Taper #50
Vertical Travel of Head, Y-Axis 59.05"

Table Cross Travel, X-Axis 70.86"
Spindle Travel, W-Axis 24.8"
Saddle Travel, Z-Axis 57.08"
Rotary Table Size 55.12" x 62.99"

Rotary Table Indexing 4 x 90 Degrees
Table Load Capacity 13,860 LBS
Spindle Speeds, 2-Ranges 5-1000 RPM
Feed Rates 0.08-80 IPM
Rapid Feeds 126 IPM
Floor Space 231" x 227"
Overall Height to Pendant Boom 154"
Machine Weight 48,400 LBS

Equipped With:

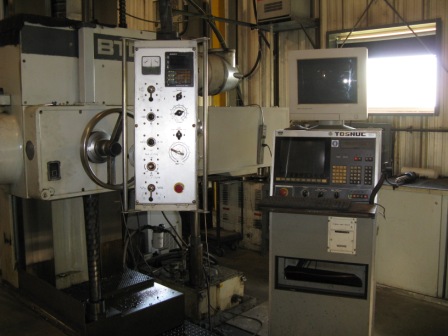

Toshiba Tosnuc 3
Automatic Tool Clamping
Sliding Telescoping Way Covers on Bed & Saddle
Hardened & Ground Ways
Coolant
25 HP Spindle Drive Motor
